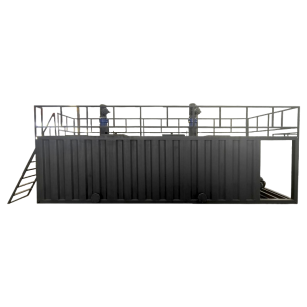

LIFENG stirring motor equipped on the heated mixing conditioning tank features explosion-proof construction. To enhance the fluidity of the liquid phase in the material, the feedstock is preheated before entering the separation system. The material is pumped into a heated mixing conditioning tank where steam heating serves dual purposes: effective sterilization and efficient oil-water separation. The conditioning tank is equipped with an internal agitator, after chemical dosing by the externally connected dosing system, the integrated stirring mechanism ensures thorough mixing, thereby optimizing the oil-water separation efficiency.
Configuration List：
No. | Configuration Name | Specification | Unit | Quantity | Remarks |
Explosion-Proof Heating Mixing Conditioning System |
1 | Pressure Sensor | WC1520 | piece | 2 | Jiangsu Tianwei |
2 | Agitator Gearbox | 25:1/7.5kw | piece | 2 | Explosion-Proof |
3 | Screw Pump | 50m³/h/18.5kw | piece | 1 | Netzsch Pump Co., Ltd. |
4 | Ski-Mounted Conditioning Tank | 12m³*2 Conditioning Tank，Skid-Mounted | piece | 1 | Lifeng Energy |
5 | Temperature Sensor | TW1200 | piece | 2 | Jiangsu Tianwei |
6 | Safety Guardrail |
| set | 1 | Lifeng Energy |
7 | Access Ladder |
| set | 1 | Lifeng Energy |
8 | Heating Pipeline |
| lot | 1 | Lifeng Energy |
