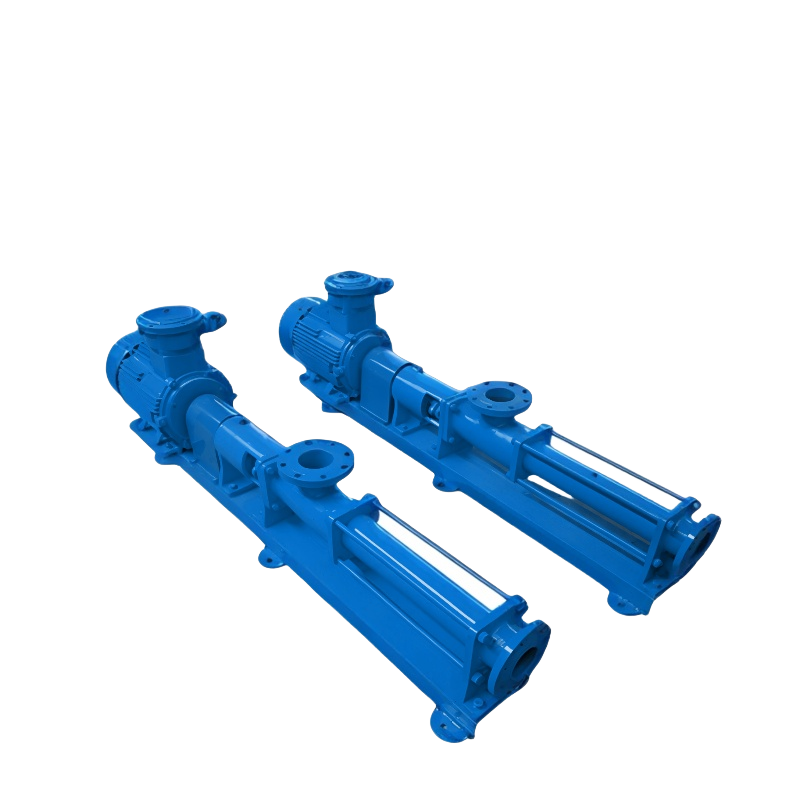

Screw Pump is with adjustable speed and can be matched with decanter centrifuge. The rated pressure of pump outlet increases by the pump grade rising, and each grade rising brings the pressure increase 0.6 MPa.
Screw Pump Widely Used For
1. Environment protection: Transmission of industrial and life sewage or other waste water.
2. Shipbuilding industry: Transmission of oil sewage
3. Petroleum Industry: Transport of crude oil.
4. Medical Industry: Tranport of thick slurry, emulsion etc.
5. Food Industry: Transport of Sticky starch, oil, honey, syrup, jam and butter etc
6. Brewing Industry
7. Construction Industry
8. Mining Industry
9. Chemical Industry
Screw Pump Parameters
| MODEL | FLOW RATE (M³/H) | WORKING PRESSURE (MPA) | MAX SPEED (R/MIN) | POWER (KW) | INLET SIZE (MM) | OUTLET SIZE (MM) |
| LFG701 | 40 | 0.6 | 720 | 11 | 150 | 125 |
| LFG851 | 55 | 0.6 | 720 | 15 | 150 | 150 |
| LFG851 | 55 | 0.6 | 550 | 15 | 150 | 125 |
| LFG1051 | 65 | 0.6 | 380 | 18.5 | 200 | 150 |
| LFG1051 | 87 | 0.6 | 500 | 22 | 200 | 150 |
| Remarks | The parameters for the screw pumps above are for general selection only. Other configuration parameters can be customized upon request |
