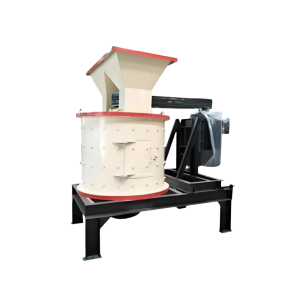

LIFENG Vertical Compound Crusher is a high-efficiency device specifically engineered for crushing dry solid-content oil sludge. Widely deployed in solid waste pretreatment across oilfields, refineries, and chemical industrial parks, this machine integrates vertical compound
crushing structure to combine hammer-impact fracturing with gradational grinding. It achieves thorough disintegration of highly viscous, compositionally complex dry oil sludge, producing output with particle size ≤5mm – meeting stringent requirements for subsequent pyrolysis, incineration, or resource recovery processes.
Core Advantages:
(1) Precision Particle Control：Integrated grading screen + adjustable crushing chamber gap ensure ≤5mm output size with >90% uniformity, reducing recirculation energy by 18-22%.
(2)Wear-Resistant Durability
Key crushing components feature high-chrome alloy + tungsten carbide composite coating delivering 3× extended service life. Combined with fully sealed dust-proof structure, maintenance frequency decreases 40% in continuous operations.
(3) Eco-Adaptive Design
• Dry processing eliminates water usage, preventing secondary contamination;
• Low-RPM motor + vibration-dampening base maintain noise ≤75 dB(A)
Exceeds ISO 14001 industrial environmental standards
Engineered for multi-process integration, this system serves as the ideal pretreatment solution for hazard-free oil sludge treatment and resource recovery circuits, empowering enterprises to achieve waste stream reduction and circular economy objectives.
Crusher Equipment Parameters
Type | LFPS-50 |
Crusher Roll Diameter (mm) | 1250 |
Housing Height (mm) | 1000 |
Main Shaft Rotational Speed (r/min) | 650 |
Feed Particle Size (mm) | 100 |
Discharge Particle Size（mm） | 0-5 |
Processing Capacity (t/h) | 50 |
Power (kW) | 110 |
Rotational Speed | 750 |
Overall Dimensions (Length x Width x Height) | 3000 x 1800 x 2200 |
Weight (T) | 18.1 |
