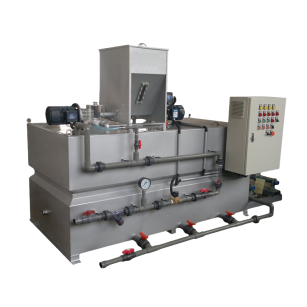

LIFENG Triple-Chamber Chemical Dosing Unit is an innovative dosing system that delivers high efficiency, safety, convenience, and operational flexibility. Incorporating advanced electronic intelligence technology with an expanded control system, it significantly enhances water treatment efficiency while reducing energy and chemical consumption, ultimately improving the maintenance and operational performance of water treatment equipment.
The triple-chamber chemical dosing system is widely applied in water treatment processes, particularly in wastewater treatment, sludge concentration, and sediment separation. By introducing PAM (polyacrylamide) into the water stream, it significantly enhances the agglomeration and settling of suspended solids, thereby improving water clarity and filtration performance.
The operational principle relies on PAM's polymer gelation effect, which effectively binds suspended particles and organic compounds to achieve water purification objectives.
Key Features:
1. The system delivers high efficiency through automated control that minimizes chemical consumption while optimizing dosage concentration based on real-time water quality analysis, ensuring consistently ideal treatment results.
2、Its fail-safe operation eliminates human error in chemical dosing, with precise volumetric control that enhances both process safety and reagent utilization efficiency.
3. The user-friendly interface allows dynamic adjustment of injection rates, with automatic concentration modulation responding to fluctuating water conditions - significantly reducing operator workload while maintaining peak performance.
LFJY-1000 Equipment Parameters：
No. | Configuration Name | Model/Specification | Unit | Quantity | Remarks |
1 | Stainless Steel Three-Chamber Pre-Mixing, Aging & Dosing Tank | 2100Ⅹ1200Ⅹ1000 | PC | 1 | Lifeng Energy |
2 | Instant Dissolver | DN50 | Set | 1 | Lifeng Energy |
3 | Reaction Tank Agitator | Ø300-850 | Set | 2 | Lifeng Energy |
4 | Explosion-Proof Gear Reducer | LDW-35-4P | PC | 2 | Jiangsu |
5 | Reaction Tank Agitator Reducer Adapter | XRz-120 Type | Set | 2 | Lifeng Energy |
6 | Reaction Tank Agitator Mounting Bracket & Accessories | Custom-Matched Components | Set | 2 | Lifeng Energy |
7 | Powder Dosing Hopper (Mixing Zone) | Effective Volume≤50L | Set | 1 | Lifeng Energy |
8 | Explosion-Proof VFD-Controlled Powder Dosing Unit | Conveying Power： 0.55kW（VFD） Model（ARV40） | Set | 1 | Lifeng Energy |
9 | Anti-Caking Vibration Device for Dry Powder | HV-01 | Set | 2 | Shanghai Lianyi |
10 | Inlet Rotor Flowmeter | LZS-15 | Set | 1 | Shanghai Keqin |
11 | Inlet Solenoid Valve Assembly | 2W400-40 | Set | 1 | Shenchi |
12 | Outlet Pipeline Valve Assembly | DN40/32 | Set | 1 | GB Standard |
13 | Explosion-Proof Diaphragm Dosing Pump | Q=2000L | PC | 2 | Zhuori or Equivalent |
14 | Chemical Liquid Delivery & Stabilization Unit | AQN-2000X | Set | 1 | Lifeng Energy |
15 | Explosion-Proof Control System | Custom-matched | Set | 1 | Lifeng Energy |
Explosion-Proof Skid-Mounted Dosing System Configuration List：
No. | Configuration Name | Model/Specifications | Unit | Quantity | Manufacturer |
Explosion-Proof Skid-Mounted Chemical Dosing System |
1 | Explosion-Proof Dosing System | 1m³/h/50m/0.75kw/DN25 | Set | 1 | Lifeng Energy |
2 | Dosing Metering Pump | 2m³/h/120m/2.2kw/DN25 | PC | 2 | Benke Pump Industry |
3 | Chemical Storage Tank | 1m³ | Set | 3 | Lifeng Energy |
4 | Explosion-Proof Control Cabinet | Custom-Matched | Set | 1 | Lifeng Energy |
