LF ENERGY shaker screens including but not limited to the following types:
Steel Frame Shake Screen
Corrugated Shaker Screen
Hook Strip Flat Screen
Hook Strip Soft Screen
LF ENERGY provides all the API series screens from API 20 to API 400. LF uses cutting edge technology and automatic machine to manufacture these various screens.
| mesh | μm | mesh | μm |
| 2 | 8000 | 100 | 150 |
| 3 | 6700 | 115 | 125 |
| 4 | 4750 | 120 | 120 |
| 5 | 4000 | 125 | 115 |
| 6 | 3350 | 130 | 113 |
| 7 | 2800 | 140 | 109 |
| 8 | 2360 | 150 | 106 |
| 10 | 1700 | 160 | 96 |
| 12 | 1400 | 170 | 90 |
| 14 | 1180 | 175 | 86 |
| 16 | 1000 | 180 | 80 |
| 18 | 880 | 200 | 75 |
| 20 | 830 | 230 | 62 |
| 24 | 700 | 240 | 61 |
| 28 | 600 | 250 | 58 |
| 30 | 550 | 270 | 53 |
| 32 | 500 | 300 | 48 |
| 35 | 425 | 325 | 45 |
| 40 | 380 | 400 | 38 |
| 42 | 355 | 500 | 25 |
| 45 | 325 | 600 | 23 |
| 48 | 300 | 800 | 18 |
| 50 | 270 | 1000 | 13 |
| 60 | 250 | 1340 | 10 |
| 65 | 230 | 2000 | 6.5 |
| 70 | 212 | 5000 | 2.6 |
| 80 | 180 | 8000 | 1.6 |
| 90 | 160 | 10000 | 1.3 |

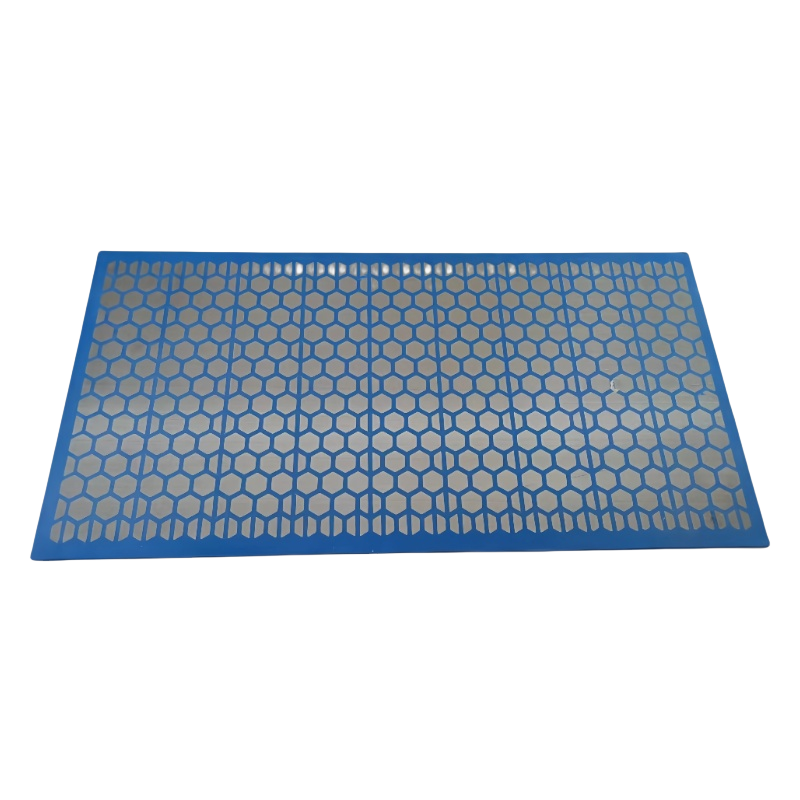

LF ENERGY reinforced metal shake screens strictly conform to the API RP 13C, all of these API shaker screens can be used to replace various shakers.
LF ENERGY reinforced metal screens are quite cost-effective. With the characteristics of light weight, long lifespan and excellent separating performance, the reinforced metal frame shaker screens usually the first choice.
LF ENERGY reinforced metal frame screens are widely used in shakers .
Shaker Screen Parameter
| NO. | SIZE | MESH RANGE | TYPE | MATERIAL STRUCTURE |
| 1 | 1165×585mm | 20-450 | Flat-back Frame Screen | Composite Material
or
Q235B+SS304 |
| 2 | 1220×710mm | 20-450 | Flat-back Frame Screen | Composite Material
or
Q235B+SS304 |
| 3 | 1155×915mm | 20-450 | Flat-back Frame Screen | Composite Material
or
Q235B+SS304 |
| 4 | 1067×737mm | 20-450 | Flat-back Frame Screen | Composite Material
or
Q235B+SS304 |
| 5 | 773×495mm | 20-450 | Flat-back Frame Screen | Q235B+SS304 |
| 6 | 1250×630mm | 20-450 | Flat-back Frame Screen | Q235B+SS304 |
| 7 | 1050×700mm | 20-450 | Rigid Hook-strip or
Flat-back Frame | Q235B+SS304 |
| 8 | 900×750mm | 20-450 | Flat-back Frame Screen | Q235B+SS304 |
| 9 | 1250×700mm | 20-450 | Flat-back Frame Screen | Q235B+SS304 |
| 10 | 1070×735mm | 20-450 | Flat-back Frame Screen | Q235B+SS304 |
| 11 | 1250×850mm | 20-450 | Flat-back Frame Screen | Q235B+SS304 |
| 12 | 1080×830mm | 20-450 | Rigid Hook-strip Type | Q235B+SS304 |
| 13 | 1200×600mm | 20-450 | Flexible Hook-strip Type | Q235B+SS304 |
| 14 | 1100×600mm | 80-350 | Flexible Hook-strip Type | Q235B+SS304 |
| Remarks | We can customize screens to meet specific client requirements, including compatibility with major OEM brands and non-standard sizes/models. |
