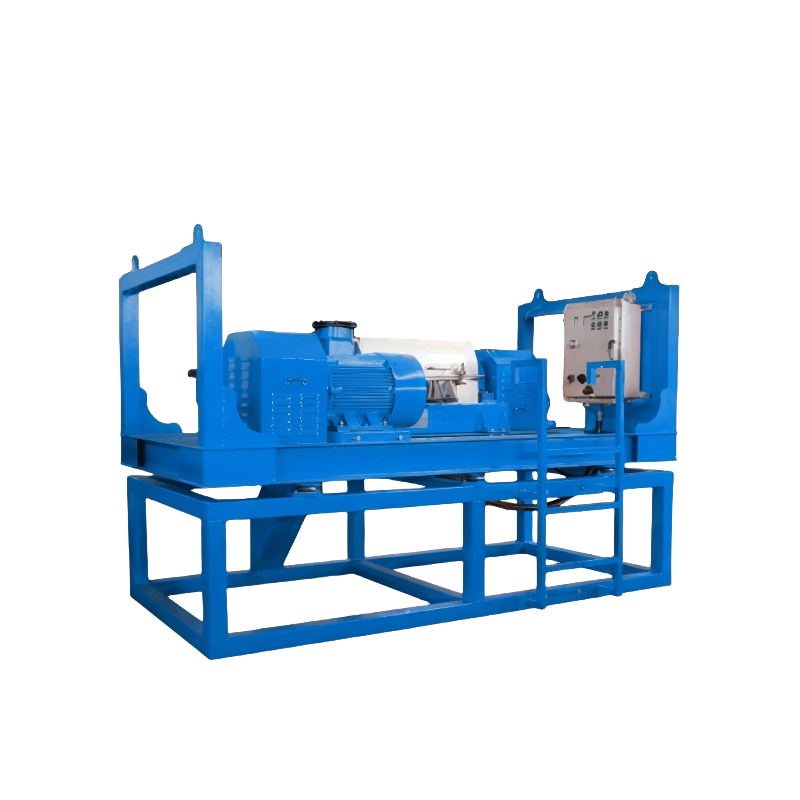

LF ENERGY means horizontal spiral type which is a normal model of decanting centrifuge LF ENERGY Solids. Decanter Centrifuge is the last stage equipment in drilling mud system for solids control and mud cleaning. The superiority of Decanting Centrifuge is embodied in the solids processing size. Decanter Centrifuge could remove the solid particles with size 2-7 microns using the principle of centrifugal action, it is an ideal choice for separating particles in drilling mud. Always there is a screw pump or submersible pump to feed the mud to Decanter Centrifuge. After the drilling fluids being fed into the centrifuge drum, under the function of centrifugal force, solid phase particles are pushed to the internal wall of the drum, then to the solid discharge export of the small end of the drum and excreted. While the fluids is excreted from the overflow hole of the large end. Such cycle is to achieve the purpose of continuous separation. High speed decanting centrifuge are more effective for separation of fine solids.
Decanter Centrifuge Parameter
| Model | LFLW450X842N | LFLW450X1250N | LFLW355X1250N | LFLW365G | LFLW365G/VFD |
| Bowl Diameter(mm) | 450mm | 450mm | 355mm | 365mm | 365mm |
| Bowl Length (mm) | 842mm | 1000mm | 1250mm | 1250mm | 1250mm |
| Adjustable Speed (rpm) | 1800rpm | 2200rpm | 3200rpm | 2200-3900rpm | 2200-3900rpm |
| G-Force | 815G | 1220G | 2035G | 3109G | 3109G |
Particle Separation
(μm) | 5~7μm | 5~7μm | 2~5μm | 2-5μm | 2-5μm |
| Main Motor Power | 22Kw-4p | 30Kw-4p | 30Kw-4p | 37Kw-4p | 37Kw-4p |
| Auxiliary Motor Power | 5.5Kw-4p | 7.5Kw-4p | 7.5Kw-4p | 7.5Kw-4p | 7.5Kw-4p |
| Max. Capacity (m³/h) | ≤40m³/h | ≤60m³/h | ≤40m³/h | ≤40m³/h | ≤40m³/h |
| Weight（kgs） | 2950 | 3150 | 2850 | 2950 | 2950 |
| Dimensions (mm) | 2380x1560x1350 | 2540x1560x1350 | 2810x1490x1350 | 3412x1600x1875 | 3412x1600x1875 |
| Certifications | IEC/UL/ATEX/CE |
| Remarks | 1.The brand of motors and bearings can be selected according to customer requirements; non-explosion-proof and explosion-proof types can be selected based on the application industry;
2. The material of the bowl and conveyor (pusher) can be selected based on customer budget considerations.
3. The processing capacities listed above were measured under slurry density: 1.2 g/cm³ and slurry viscosity: 45 seconds (Marsh funnel viscosity). |
Economic Configuration Decanter Centrifuge Features:
Patent Design with the economic configuration for the centrifuge
Centrifuge Bowl Cylindrical and Conical section made from Duplex Stainless Steel 2205 by centrifugal casting or SS 304 Material
Other Parts of the bowl assembly material: stainless steel SS304.
Screw protection: Ceramic Tiles for longer life and easier replacement.
Screw flow distribution port and bowl solids discharge port protected by tungsten carbide alloy.
Easily adjustable liquid discharge weir height for flexible application.
Bowl assembly supported by tighten belt for protection of bearing inmoving.
Pressurized EX Proof VFD control cabinet for the centrifuge
Decanter Centrifuge with Genuine NSK/FAG bearing
Decanter Centrifuge for Drilling Mud Solids Control System:
Decanter centrifuge is the final processing units in the arrangement of solids control equipment. It could be used to process unweighted and weighted, water-based and oil-based drilling fluids (muds).
On oilfield, middle speed centrifuge is used to recycle the the barite and bentonite in solids control system, high speed decanter centrifuge could separate the fine solids in drilling mud after the desilter unit. Meanwhile, high speed centrifuge centrifuge is always applied in drilling waste management to recover the valuable drilling fluids. Typically, oilfield decanting centrifuge is preceded by gas busters, gumbo removal equipment (if utilized), shale shakers, mud Cleaners (if utilized), Vacuum degassers and hyrdocyclones.
