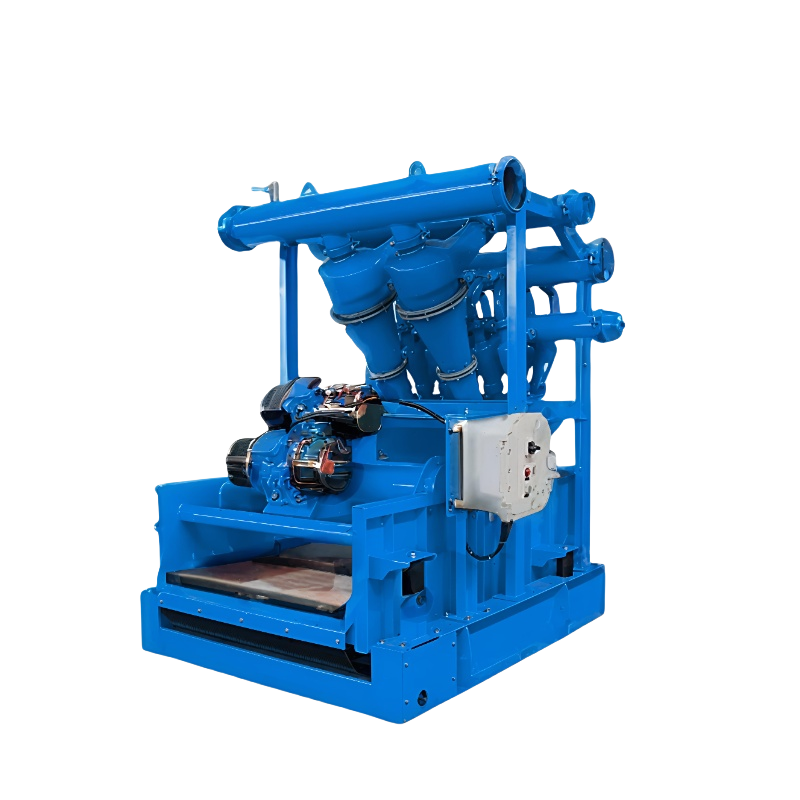

Mud Cleaner is the second stage and the third stagesolids control equipment which is a combination of Desander, Desilter and underflow shaker shaker. Comparing with traditional separate Desander and Desilter, the mud cleaner has a higher cleaning function. The Underflow Screen equals another shaler shaker which receives the waste out from the cyclone nozzle for additional processing. So that mud cleaner could recover more valuable drilling mud. Mud cleaner is the ideal device of the second class and the third class solid control to treat the drilling mud.
The manifold of standard LF ENERGY mud cleaner could accept one-three ea 10” desander cones and eight-sixteen ea 4” desilter cones which could offer the treating capacity various from 500GPM to 1500GPM. Anyhow, a customized quantity cone would be provided as per customer special request. LF ENERGY mud cleaner can meet almost all needs for oil & gas well drilling fluids treatment system and HDD Mud Recycling System.
Mud Cleaner Features & Benefits
The entire shaker deck undergoes heat treatment to relieve welding stress, enabling it to withstand high G force.
The shaker screen is installed with a mechanical ratchet wrench gear for quick tightening, facilitating easy disassembly and ensuring long-lasting durability.
The wedge blocks for tightening the screen mesh are made of nylon, providing high temperature resistance, corrosion resistance, and wear resistance.
Vibration motor: Italian OLI brand.
Polyurethane material is used for sealing between the shale shaker and screen, ensuring a long service life and easy replacement.
The supporting rubber strips for the bottom frame of the vibration screen are made of stainless steel, offering strong corrosion resistance and a long service life.
The electrical control box is made of aluminum alloy/stainless steel explosion-proof material, ensuring good sealing and strong corrosion resistance.
The pre-tensioned shaker screen allows for convenient and quick disassembly and replacement.
The mud outlet can be switched between bottom and side outlets, accommodating flexible installation on site.
The angle of the shaker deck can be mechanically adjusted while working at both ends , adapting to different processing capacities.
Mud Cleaner for Drilling Fluids Solids Control System:
Mud Cleaner is also called Desander and Desilter assembly. Namely, mud cleaner consists of a two-stage separation process using a combination of hydrocyclones frame mounted over a shale shaker to operate as a single unit. Mud conditioner is effective on processing both weighted and unweighted drilling mud during mud systems in removing and drying solids while retaining the expensive drilling liquid. Used correctly, the drilling mud cleaner would greatly lower both drilling-fluid and disposal costs.
In oilfield solids control system, mud cleaner is one type very efficient device in oil & gas drilling mud cleaning system. Drilling Mud Cleaners are one of the important equipments for solids liqiud separation system
Mud Cleaner Parameter
| Model | LFZJ103-2S12N | LFZJ104-2S12N | LFZJ70-3S16N | LFZJ70-3S | LFZJ70-16N |
| Processing Capacity | ≤240m3/h
（1056GPM) | ≤240m3/h
（1056GPM) | ≤360m3/h
（1584GPM) | ≤360m3/h
（1584GPM) | ≤360m3/h
（1584GPM) |
| Underflow Screen Model | LFZS103 | LFZS104 | LFZS70-3P | LFZS70-3P | LFZS70-3P |
| Desander Hydrocyclone | 2x10" (250mm) | 2x10" (250mm) | 3x10" (250mm) | 3x10" (250mm) | N/A |
| Desilter Hydrocyclone | 12x4" (100mm) | 12x4" (100mm) | 16x4" (100mm) | N/A | 16x4" (100mm) |
| Matching Slurry Pump | 55kw (73hp) | 55kw (73hp) | 75kw (100hp) | 75kw (100hp) | 75kw (100hp) |
| Motor Power | 1.5kw(2.0hp)
×2(OLI) | 1.865kw(2.5hp)
×2（Martin） | 1.5kw(2.0hp)
×2（OLI） | 1.5kw(2.0hp)
×2（OLI） | 1.5kw(2.0hp)
×2（OLI） |
| Vibration Force | ≦8.0Gs | ≤8.5Gs | ≦8.0Gs | ≦8.0Gs | ≦8.0Gs |
| Ambient Temperature | 30°C (86°F) | 30°C (86°F) | 30°C (86°F) | 30°C (86°F) | 30°C (86°F) |
| Design Range | -40-50℃
（-40-122°F） | -40-50℃
（-40-122°F） | -40-50℃
（-40-122°F） | -40-50℃
（-40-122°F） | -40-50℃
（-40-122°F） |
| Noise Level | 75-85 dBA | 75-85 dBA | 75-85 dBA | 75-85 dBA | 75-85 dBA |
| Screen Box Adjustment Angle | -1°~+5° | -1°~+5° | -1°~+5° | -1°~+5° | -1°~+5° |
| Screen Material | Composite/Metal Frame | Composite/Metal Frame | Metal Frame | Metal Frame | Metal Frame |
| Screen Size | 585×1165 mm | 585×1165 mm | 700×1250 mm | 700×1250 mm | 700×1250 mm |
| Screen Qty | 3pcs | 4pcs | 3pcs | 3pcs | 3pcs |
| Screen Area | 2.1㎡ (23.5ft²) | 2.73㎡ (30ft²) | 2.62㎡ (29.2ft²) | 2.62㎡ (29.2ft²) | 2.62㎡ (29.2ft²) |
| Screen Mesh Size | API 120/150/175 | API 120/150/175 | API 120/150/175 | API 120/150/175 | API150/175/200 |
| Weight | 1768Kg | 1980 kg | 2230 Kg | 2300 | 2260 |
| Dimensions (mm) | 2030×1965×2240 | 2615×1965×2240 | 2403x1965x2240 | 2540x1950x2250 | 2540x1950x2000 |
| Electrical System | 220-240V/ 50Hz, 380-415V/ 50Hz, 440-480V/ 60Hz, 575-600V/ 60Hz |
| Certifications | IEC/UL/ATEX/CE |
| Remarks | 1. Vibration motor selection can be customized based on customer requirements (explosion-proof or non-explosion-proof, depending on industry standards);
2. Underflow screens and hydrocyclones can be selected based on customer preferences;
3. Screen types (metal frame, composite material, or flat/wavy screens) can be customized as per customer needs;
4. The processing capacity is measured under the following conditions: Mud density—1.2 g/cm³, Mud viscosity—45s, Screen mesh—40 mesh. |
